GH Horizontal Geared Motor

Product
categories

Company
news

4dhcpmingchen

Your location Index -> Product -> Medium Electromechanical Series -> GH Horizontal Geared Motor

Model parameter introduction：GH-22-200-60-S/AB
GH：Horizontal Geared Motor
22：Output shaft22mm
horsepower：200W 1/4HP
Reduction ratio：1:60
S：Three phase (A：Simplex)
B：brake<Select>

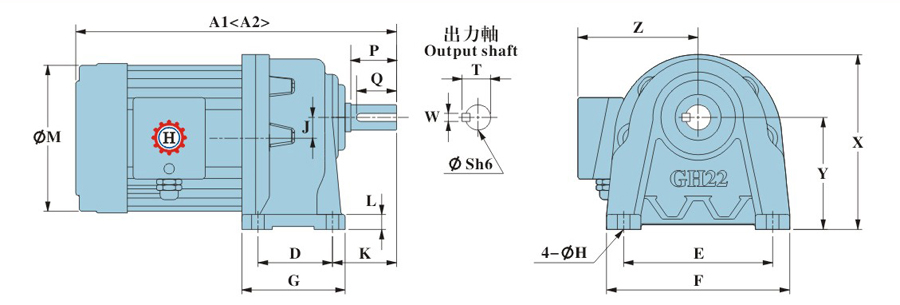

GH horizontal gear motor size table: Click the corresponding download link to download the Dimensions (Note: A1: three-phase motor size, A2: single-phase motor size)

horsepower	Reduction ratio	A1	A2	D	E	F	G	H	L	J	K	M	X	Y	Z	P	Q	S	T	W	weight	download
75W(1/10HP)	3~50	253	253	40	110	135	65	9	10	16	48	127	132	88.5	105	30	25	18	20	5	5.1	Dimensions
75W(1/10HP)	60~200	265	265	40	110	135	65	9	10	16	48	127	132	88.5	105	30	25	18	20	5	5.2	Dimensions
75W(1/10HP)	250~1800	365	355	65	130	163	90	11	13	18.2	56	127	152	97.5	105	40	35	22	25	7	10	Dimensions
100W(1/8HP)	3~50	253	273	40	110	135	65	9	10	16	48	127	132	88.5	105	30	25	18	20	5	5.3	Dimensions
100W(1/8HP)	60~200	285	305	65	130	163	90	11	13	18.2	56	127	152	97.5	105	40	35	22	25	7	6.9	Dimensions
100W(1/8HP)	250~1800	385	405	90	140	180	120	11	15	20.8	66	127	180	116	105	45	40	28	31	7	12	Dimensions
200W(1/4PH)	3~10	275	283	40	110	135	65	9	10	16	48	127	132	88.5	105	30	25	18	20	5	6.7	Dimensions
200W(1/4PH)	15~90	307	327	65	130	163	90	11	13	18.2	56	127	152	97.5	105	40	35	22	25	7	8.6	Dimensions
200W(1/4PH)	100~200	337	357	90	140	180	120	11	15	20.8	66	127	180	116	105	45	40	28	31	7	11	Dimensions
200W(1/4PH)	250~1800	475	485	130	170	215	160	13	20	30.2	76	127	210	138.5	105	55	50	32	35.5	10	28	Dimensions
400W(1/2HP)	3~10	327	340	65	130	163	90	11	13	18.2	56	127	152	97.5	105	40	35	22	25	7	11	Dimensions
400W(1/2HP)	15~90	350	370	90	140	180	120	11	15	20.8	66	127	180	116	105	45	40	28	31	7	14	Dimensions
400W(1/2HP)	100~200	385	405	130	170	215	160	13	20	30.2	76	127	210	138.5	105	55	50	32	35.5	10	26	Dimensions
400W(1/2HP)	250~1800	530	545	150	210	260	185	15	23	42.2	85	127	255	160	105	65	60	40	43.5	10	41	Dimensions
750W(1HP)	3~25	375	415	90	140	180	120	11	15	20.8	66	165	180	116	125	45	40	28	31	7	15	Dimensions
750W(1HP)	30~120	410	450	130	170	215	160	13	20	30.2	76	165	210	138.5	125	55	50	32	35.5	10	28	Dimensions
750W(1HP)	125~200	435	475	150	210	260	185	15	23	42.2	85	165	255	160	125	65	60	40	43.5	10	42	Dimensions
750W(1HP)	250~1800	590	625	170	265	330	220	19	25	51.4	100	165	320	200	125	80	75	50	54	14	68	Dimensions
1500W(2HP)	3~25	440	480	130	170	215	160	13	20	30.2	76	190	210	138.5	145	55	50	32	35.5	10	32	Dimensions
1500W(2HP)	30~120	465	505	150	210	260	185	15	23	42.2	85	190	255	160	145	65	60	40	43.5	10	46	Dimensions
1500W(2HP)	125~180	515	555	170	265	330	220	19	25	51.4	100	190	320	200	145	80	75	50	54	14	71	Dimensions
2200W(3HP)	4~60	495	-	150	210	260	185	15	23	42.2	85	215	255	160	160	65	60	40	43.5	10	48	Dimensions
2200W(3HP)	70~120	535	-	170	265	330	220	19	25	51.4	100	215	320	200	160	80	75	50	54	14	73	Dimensions
3700W(5HP)	4~25	510	-	150	210	260	185	15	23	42.2	85	215	255	160	160	65	60	40	43.5	10	50	Dimensions
3700W(5HP)	30~80	550	-	170	265	330	220	19	25	51.4	100	215	320	200	160	80	75	50	54	14	75	Dimensions
