Model parameter introduction：AMV-345-5-60
AMV：Vertical plus motor
45：Output shaft45mm
horsepower：5HP 3.7kw
Reduction ratio：1:60

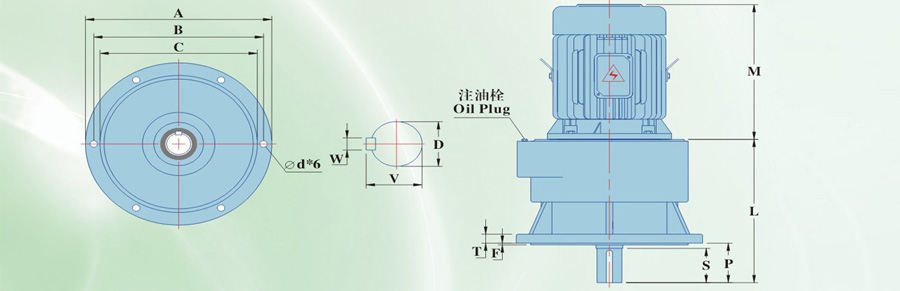

AMV vertical geared motor size table: Click the corresponding download link to download the size chart

Reduction ratio	horsepower	model	A	B	C	F	L	M	P	T	d	D	S	V	W	download
4~10	1/4	AMV125	210	190	170	5	165	190	55	10	13	25	45	28	7	No
4~10	1/2	AMV125	210	190	170	5	165	210	55	10	13	25	45	28	7	No
4~10	1	AMV230	250	225	200	5	210	250	65	12	14	30	55	33	7	download
4~10	2	AMV230	250	225	200	5	210	300	65	12	14	30	55	33	7	download
4~10	3	AMV235	280	255	230	5	240	321	70	13	15	35	60	38.5	10	download
4~10	5	AMV340	310	280	250	5	250	337	75	15	15	40	65	43.5	10	download
4~10	7.5	AMV345	350	320	290	5	285	356	80	15	15	45	70	48.5	12	download
4~10	10	AMV450	400	370	340	5	320	380	90	17	18	50	80	53.5	12	download
4~10	15	AMV460	450	410	380	5	330	500	95	18	18	60	85	63.5	15	download
4~10	20	AMV570	510	460	420	5	400	538	110	20	21	70	100	74.5	18	No
11~30	1/4	AMV125	210	190	170	5	165	190	55	10	13	25	45	28	7	No
11~30	1/2	AMV125	210	190	170	5	165	210	55	10	13	25	45	28	7	No
11~30	1	AMV230	250	225	200	5	210	250	65	12	14	30	55	33	7	download
11~30	2	AMV235	280	255	230	5	240	300	70	13	15	35	60	38.5	10	download
11~30	3	AMV340	310	280	250	5	250	321	75	15	15	40	65	43.5	10	download
11~30	5	AMV345	350	320	290	5	285	337	80	15	15	45	70	48.5	12	download
11~30	7.5	AMV450	400	370	340	5	320	356	90	17	18	50	80	53.5	12	download
11~30	10	AMV460	450	410	380	5	330	380	95	18	18	60	85	63.5	15	download
11~30	15	AMV570	510	460	420	5	400	494	110	20	21	70	100	74.5	18	No
31~60	1/4	AMV125	210	190	170	5	185	190	55	10	13	25	45	28	7	No
31~60	1/2	AMV125	210	190	170	5	185	210	55	10	13	25	45	28	7	No
31~60	1	AMV230	250	225	200	5	235	250	65	12	14	30	55	33	7	download
31~60	2	AMV235	280	255	230	5	265	300	70	13	15	35	60	38.5	10	download
31~60	3	AMV340	310	280	250	5	285	321	75	15	15	40	65	43.5	10	download
31~60	5	AMV345	350	320	290	5	325	337	80	15	15	45	70	48.5	12	download
31~60	7.5	AMV450	400	370	340	5	360	356	90	17	18	50	80	53.5	12	download
31~60	10	AMV460	450	410	380	5	370	380	95	18	18	60	85	63.5	15	download
31~60	15	AMV570	510	460	420	5	450	494	110	20	21	70	100	74.5	18	No
61~100	1/4	AMV125	210	190	170	5	185	190	55	10	13	25	45	28	7	No
61~100	1/2	AMV230	250	225	200	5	235	230	65	12	14	30	55	33	7	download
61~100	1	AMV235	280	255	230	5	265	250	70	13	15	35	60	38.5	10	download
61~100	2	AMV340	310	280	250	5	285	310	75	15	15	40	65	43.5	10	download
61~100	3	AMV345	350	320	290	5	325	321	80	15	15	45	70	48.5	12	download
61~100	5	AMV450	400	370	340	5	360	350	90	17	18	50	80	53.5	12	download
61~100	7.5	AMV460	450	410	380	5	370	356	95	18	18	60	85	63.5	15	download
61~100	10	AMV570	510	460	420	5	450	380	110	20	21	70	100	74.5	18	No
101~180	1/4	AMV230	250	225	200	5	235	210	65	12	14	30	55	33	7	download
101~180	1/2	AMV235	280	255	230	5	265	230	70	13	15	35	60	38.5	10	download
101~180	1	AMV340	310	280	250	5	285	260	75	15	15	40	65	43.5	10	download
101~180	2	AMV345	350	320	290	5	325	310	80	15	15	45	70	48.5	12	download
101~180	3	AMV450	400	370	340	5	360	335	90	17	18	50	80	53.5	12	download
101~180	5	AMV460	450	410	380	5	370	350	95	18	18	60	85	63.5	15	download
101~180	7.5	AMV570	510	460	420	5	450	356	110	20	21	70	100	74.5	18	No
