Your location  Index -> Product  ->  Medium Electromechanical Series  ->  GVM Vertical straight knot reducer
Model parameter introduction：GVM-22-200-90
GVM：Vertical straight knot type
22：Output shaft22mm
horsepower：200W 1/4HP
Reduction ratio： 1:90

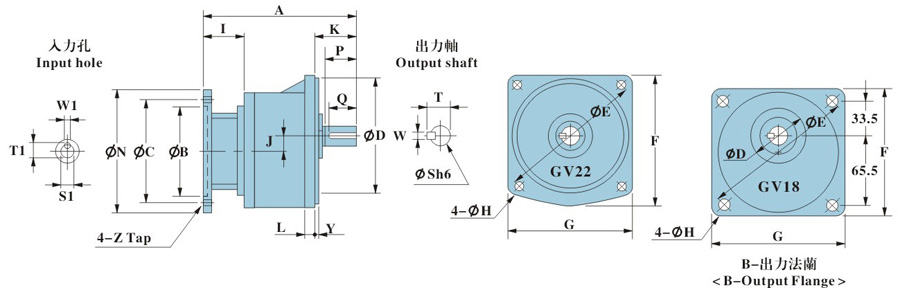

size
GVM vertical straight reducer size table: Click the corresponding download link to download the size chart
horsepower Reduction ratio A D E F G H L J K Y B C N Z I P Q S T W S1 T1 W1 weight download
200W(1/4HP) 3~10(B) 155 50 140 122 122 9 12 16 39 5 110 130 158 8 53 30 25 18 20 5 11 13 4 4

download
200W(1/4HP) 15~90 188 148 185 170 156 11 12 18.2 47 3.5 110 130 158 8 53 40 35 22 25 7 11 13 4 6

download
200W(1/4HP) 100~200 216 170 220 195 180 11 14 20.8 56 4 110 130 158 8 53 45 40 28 31 7 11 13 4 8

download
400W（1/2HP） 3~10 188 148 185 170 156 11 12 18.2 47 3.5 110 130 158 8 53 40 35 22 25 7 14 16.5 5 6

download
400W（1/2HP） 15~90 216 170 220 195 180 11 14 20.8 56 4 110 130 158 8 53 45 40 28 31 7 14 16.5 5 8

download
400W（1/2HP） 100~200 250 185 255 235 216 13 15 30.2 66 4 110 130 158 8 53 55 50 32 35.5 10 14 16.5 5 21

download
750W(1HP) 3~25 240 170 220 195 180 11 13 20.8 54 4 130 165 198 10 80 45 40 28 31 7 19 21.5 6 11

download
750W(1HP) 30~120 275 185 255 240 225 13 15 30.2 66 4 130 165 198 10 80 55 50 32 35.5 10 19 21.5 6 26

download
750W(1HP) 125~200 305 230 310 295 262 15 22 42.2 80 5 130 165 198 10 80 65 60 40 43.5 10 19 21.5 6 38

download
1500W(2HP) 3~25 275 185 255 235 216 13 16 30.2 66 4 130 165 198 10 80 55 50 32 35.5 10 24 27 8 26

download
1500W(2HP) 30~120 305 230 310 295 262 15 20 42.2 80 5 130 165 198 10 80 65 60 40 43.5 10 24 27 8 39

download
1500W(2HP) 125~180 347 280 390 365 325 19 22 51.4 89 5 130 165 198 10 80 80 75 50 54 14 24 27 8 62

download
2200W(3HP) 4~60 320 230 310 295 262 15 22 42.2 80 5 180 215 250 12 95 65 60 40 43.5 10 28 31 8 43

download
2200W(3HP) 70~120 365 280 390 365 325 19 22 51.4 89 5 180 215 250 12 95 80 75 50 54 14 28 31 8 62

download
3700W(5HP) 4~25 320 230 310 295 262 15 22 42.2 80 5 180 215 250 12 95 65 60 40 43.5 10 28 31 8 43

download
3700W(5HP) 30~80 365 280 390 365 325 19 22 51.4 89 5 180 215 250 12 95 80 75 50 54 14 28 31 8 62 download
