Your location  Index -> Product  ->  Medium Electromechanical Series  ->  GHM horizontal straight knot reducer
Model parameter introduction：GHM-22-200-90
GHM：Horizontal straight knot type
22：Output shaft22mm
horsepower：200W 1/4HP
Reduction ratio：1:90

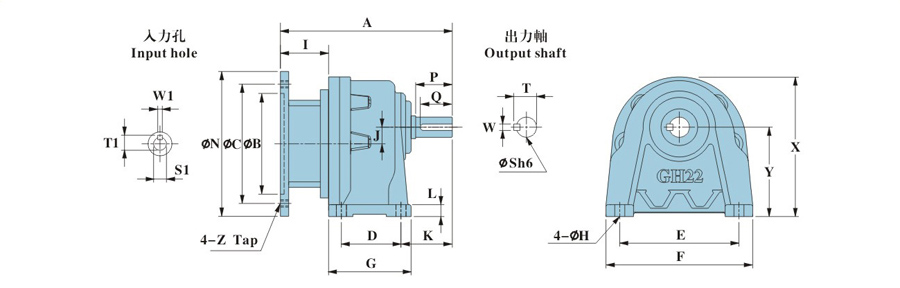

size
GHM horizontal straight reducer size table: Click the corresponding download link to download the size chart
horsepower Reduction ratio A D E F G H L J K X Y B C N Z I P Q S T W S1 T1 W1 weight download
200W(1/4HP) 3~10 155 40 110 135 65 9 10 16 48 132 88.5 110 130 158 8 53 30 25 18 20 5 11 13 4 4

download
200W(1/4HP) 15~90 188 65 130 163 90 11 13 18.2 56 152 97.5 110 130 158 8 53 40 35 22 25 7 11 13 4 6

download
200W(1/4HP) 100~200 216 90 140 180 120 11 15 20.8 66 180 116 110 130 158 8 53 45 40 28 31 7 11 13 4 8

download
400W（1/2HP） 3~10 188 65 130 163 90 11 15 18.2 56 152 97.5 110 130 158 8 53 40 35 22 25 7 14 16.5 5 6

download
400W（1/2HP） 15~90 216 90 140 180 120 11 15 20.8 66 180 116 110 130 158 8 53 45 40 28 31 7 14 16.5 5 8

download
400W（1/2HP） 100~200 250 130 170 215 160 13 20 30.2 76 210 138.5 110 130 158 8 53 55 50 32 35.5 10 14 16.5 5 21

download
750W(1HP) 3~25 240 90 140 180 120 11 15 20.8 66 180 116 130 165 198 10 80 45 40 28 31 7 19 21.5 6 11

download
750W(1HP) 30~120 275 130 170 215 160 13 20 30.2 76 210 138.5 130 165 198 10 80 55 50 32 35.5 10 19 21.5 6 26

download
750W(1HP) 125~200 305 150 210 260 185 15 23 42.2 85 255 160 130 165 198 10 80 65 60 40 43.5 10 19 21.5 6 38

download
1500W(2HP) 3~25 275 130 170 215 160 13 20 30.2 76 210 138.5 130 165 198 10 80 55 50 32 35.5 10 24 27 8 26

download
1500W(2HP) 30~120 305 150 210 260 185 15 23 42.2 85 255 160 130 165 198 10 80 65 60 40 43.5 10 24 27 8 39

download
1500W(2HP) 125~180 347 170 265 330 220 19 25 51.4 100 320 200 130 165 198 10 80 80 75 50 54 14 24 27 8 60

download
2200W(3HP) 4~60 320 150 210 260 185 15 23 42.2 85 255 160 180 215 250 12 95 65 60 40 43.5 10 28 31 8 43

download
2200W(3HP) 70~120 365 170 265 330 220 19 25 51.4 100 320 200 180 215 250 12 95 80 75 50 54 14 28 31 8 60

download
3700W(5HP) 4~25 315 150 210 260 185 15 23 42.2 85 255 160 180 215 250 12 95 65 60 40 43.5 10 28 31 8 43

download
3700W(5HP) 30~80 365 170 265 330 220 19 25 51.4 100 320 200 180 215 250 12 95 80 75 50 54 14 28 31 8 60

download
