Your location  Index -> Product  ->  Medium Electromechanical Series  ->  GVD vertical double shaft reducer
Model parameter introduction：GVD-22-200-90
GVD：Vertical biaxial
22：Output shaft22mm
horsepower：200W 1/4HP
Reduction ratio：1:90

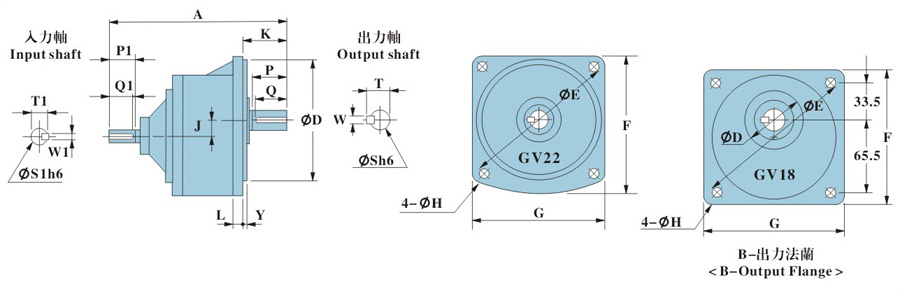

size
GVD vertical double shaft reducer size table: Click the corresponding download link to download the size chart
horsepower Reduction ratio A D E F G H L J K Y P Q S T W P1 Q1 S1 T1 W1 weight download
100W(1/8HP) 3~50(B) 175 50 140 122 122 9 12 16 39 5 30 25 18 20 5 30 25 14 16 5 3

download
100W(1/8HP) 60~200 207 148 185 170 156 11 12 18.2 47 3.5 40 35 22 25 7 30 25 14 16 5 4

download
200W(1/4HP) 3~10(B) 175 50 140 122 122 9 12 16 39 5 30 25 18 20 5 30 25 14 16 5 3

download
200W(1/4HP) 15~90 207 148 185 170 156 11 12 18.2 47 3.5 40 35 22 25 7 30 25 14 16 5 5

download
200W(1/4HP) 100~200 236 170 220 195 180 11 14 20.8 56 4 45 40 28 31 7 30 25 14 16 5 7

download
400W（1/2HP） 3~10 207 148 185 170 156 11 12 18.2 47 3.5 40 35 22 25 7 30 25 14 16 5 6

download
400W（1/2HP） 15~90 236 170 220 195 180 11 14 20.8 56 4 45 40 28 31 7 30 25 14 16 5 7

download
400W（1/2HP） 100~200 273 185 255 235 216 13 15 30.2 66 4 55 50 32 35.5 10 30 25 14 16 5 19

download
750W(1HP) 3~25 275 170 220 195 180 11 14 20.8 56 4 45 40 28 31 7 40 35 19 21.5 6 7

download
750W(1HP) 30~200 315 185 255 235 216 13 15 30.2 66 4 55 50 32 35.5 10 40 35 19 21.5 6 21

download
750W(1HP) 125~200 336 230 310 295 262 15 22 42.2 80 5 65 60 40 43.5 10 40 35 19 21.5 6 35

download
1500W(2HP) 3~25 320 185 255 235 216 13 15 30.2 66 4 55 50 32 35.5 10 50 40 24 27.5 8 21

download
1500W(2HP) 30~120 350 230 310 295 262 15 22 42.2 80 5 65 60 40 43.5 10 50 40 24 27.5 8 35

download
1500W(2HP) 125~180 390 280 390 365 325 19 22 51.4 89 5 80 75 50 54 14 50 40 24 27.5 8 55

download
2200W(3HP) 4~60 360 230 310 295 262 15 22 42.2 80 5 65 60 40 43.5 10 60 50 28 31 8 35

download
2200W(3HP) 70~120 405 280 390 365 325 19 22 51.4 89 5 80 75 50 54 14 60 50 28 31 8 55

download
3700W(5HP) 4~25 360 230 310 295 262 15 22 42.2 80 5 65 60 40 43.5 10 60 50 28 31 8 35

download
3700W(5HP) 30~80 405 280 390 365 325 19 22 51.4 89 5 80 75 50 54 14 60 50 28 31 8 55

download
