Your location Index -> Product -> Medium Electromechanical Series -> GHD horizontal double shaft reducer

Model parameter introduction：GHD-22-200-90
GHD：Horizontal biaxial
22：Output shaft22mm
horsepower：200W 1/4HP
Reduction ratio：1:90

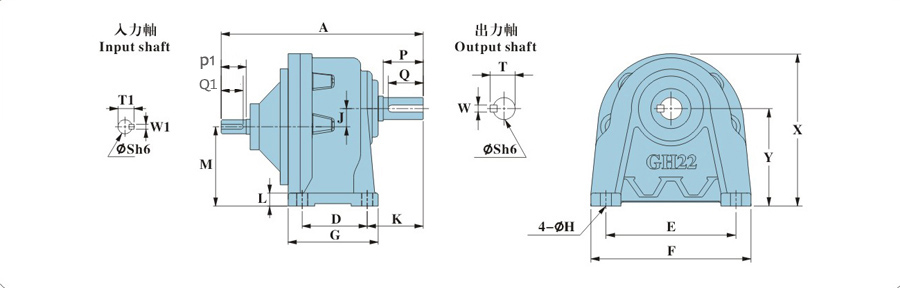

GHD horizontal double shaft reducer size table: Click the corresponding download link to download the size chart

horsepower	Reduction ratio	A	D	E	F	G	H	L	J	K	M	X	Y	P	Q	S	T	W	P1	Q1	S1	T1	W1	weight	download
100W(1/8HP)	3~50	175	40	110	135	65	9	10	16	48	72.5	132	88.5	30	25	18	20	5	30	25	14	16	5	3	download
100W(1/8HP)	60~200	207	65	130	163	90	11	13	18.2	56	79.3	152	97.5	40	35	22	25	7	30	25	14	16	5	4	download
200W(1/4HP)	3~10	175	40	110	135	65	9	10	16	48	72.5	132	88.5	30	25	18	20	5	30	25	14	16	5	3	download
200W(1/4HP)	15~90	207	65	130	163	90	11	13	18.2	56	79.3	152	97.5	40	35	22	25	7	30	25	14	16	5	5	download
200W(1/4HP)	100~200	236	90	140	180	120	11	15	20.8	66	95.2	180	116	45	40	28	31	7	30	25	14	16	5	7	download
400W（1/2HP）	3~10	207	65	130	163	90	11	13	18.2	56	79.3	152	97.5	40	35	22	25	7	30	25	14	16	5	6	download
400W（1/2HP）	15~90	236	90	140	180	120	11	15	20.8	66	95.2	180	116	45	40	28	31	7	30	25	14	16	5	7	download
400W（1/2HP）	100~200	273	130	170	215	160	13	20	30.2	76	108.3	210	138.5	55	50	32	35.5	10	30	25	14	16	5	19	download
750W(1HP)	3~25	276	90	140	180	120	11	15	20.8	66	95.2	180	116	45	40	28	31	7	40	35	19	21.5	6	7	download
750W(1HP)	30~200	315	130	170	215	160	13	20	30.2	76	108.3	210	138.5	55	50	32	35.5	10	40	35	19	21.5	6	21	download
750W(1HP)	125~200	340	150	210	260	185	15	23	42.2	85	117.8	255	160	65	60	40	43.5	10	40	35	19	21.5	6	35	download
1500W(2HP)	3~25	320	130	170	215	160	13	20	30.2	76	108.3	210	138.5	55	50	32	35.5	10	50	40	24	27.5	8	21	download
1500W(2HP)	30~120	350	150	210	260	185	15	23	42.2	85	117.8	255	160	65	60	40	43.5	10	50	40	24	27.5	8	35	download
1500W(2HP)	125~180	387	170	265	330	220	19	25	51.4	100	148.6	320	200	80	75	50	54	10	50	40	24	27.5	8	55	download
2200W(3HP)	4~60	360	150	210	260	185	15	23	42.2	85	117.8	255	160	65	60	40	43.5	10	60	50	28	31	8	35	download
2200W(3HP)	70~120	405	170	265	330	220	19	25	51.4	100	148.6	320	200	80	75	50	54	14	60	50	28	31	8	55	download
3700W(5HP)	4~25	360	150	210	260	185	15	23	42.2	85	117.8	255	160	65	60	40	43.5	10	60	50	28	31	8	35	download
3700W(5HP)	30~80	405	170	265	330	220	19	25	51.4	100	148.6	320	200	80	75	50	54	14	60	50	28	31	8	55	download
